Description

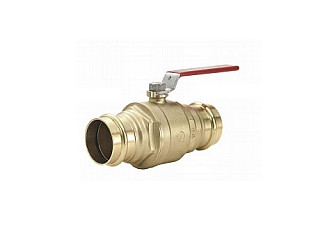

Legend Valve 101-009 2-1/2" Legend-Press Ball Valve, Full Port, Press To Connect Deeper tubing sockets and dual O-rings at each pressconnection, provide extra stability during the pressing process as well as enhanced sealing. Compatible with commercially-available VUS profile jaws Oversized lever handle with pre-drilled tag hole isideal for commercial applications Working Pressure, Non-Shock (PSI) Cold working pressure (PSI Cold Working Pressure): 1/2" and 3/4": 600 psi 1" and 1-1/4": 500 psi 1-1/2" and 2": 400 psi Saturated steam (WSP): Not suitable for steam service Maximum service temp: 230? NSF Certified to ANSI/NSF Standard 61-8 and Standard 61, Annex G Valve construction conforms to MSS SP-110; press-type end connections are currently excluded from this standard Threaded end connections conform to ANSI / ASME B1.20.1 Manufactured in an ISO accredited facility
- Deeper tubing sockets and dual O-rings at each pressconnection, provide extra stability
- during the pressing process as well as enhanced sealing.
- Compatible with commercially-available VUS profile jaws
- Oversized lever handle with pre-drilled tag hole isideal for commercial applications
- Working Pressure, Non-Shock (PSI)
- Cold working pressure (PSI Cold Working Pressure): 1/2" and 3/4": 600 psi
- 1" and 1-1/4": 500 psi
- 1-1/2" and 2": 400 psi
- Saturated steam (WSP): Not suitable for steam service
- Maximum service temp: 230?
- NSF Certified to ANSI/NSF Standard 61-8 and Standard 61, Annex G
- Valve construction conforms to MSS SP-110; press-type end connections are currently excluded from this standard
- Threaded end connections conform to ANSI / ASME B1.20.1
- Manufactured in an ISO accredited facility
Product Features
Extended Information
Technical Specs
*The list price may not necessarily be the price at which the product or service is sold.
