Description

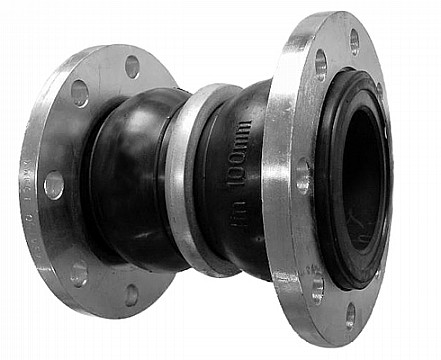

Kuriyama HTDRF120X13 HTDRF Series Double Sphere Flanged Rubber Expansion Joint Brand: HOSE TEC Temperature: 220 DegF Series: HTDRF Diameter: 12" : 300.00 mm Length (L): 13" Axial Compression: 2 1/2" Axial Elongation: 1 1/2" Transverse Deflection: 1 3/4" Angular Deflection: 30 Deg Max. Pressure: 150 psig Vacuum Rating: 16 inHg Weight Each: 95.00 lbs Application / Material Conveyed: Chemicals/Petroleum, Construction
- Application: Chemicals/Petroleum, Construction
- Excellent ability to absorb vibration and sound.
- Allows for four-way movement.
- Withstands high pressure.
- Easy installation, using floating flanges.
- Excellent for use with moderate chemicals and acids, most oils, fats and grease and many solvents. Not for use with oxidizing acids, esters and ketones.
- Brand: HOSE TEC
- Temperature: 220 DegF
- Series: HTDRF
Product Features
Extended Information
Technical Specs
