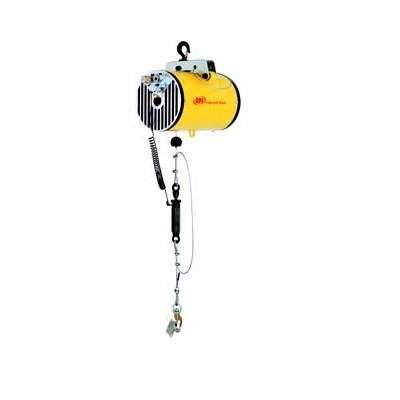

Ingersoll-Rand BAW080060 Pneumatic Balancer, BA Series, Capacity (lbs) 800

Ingersoll-Rand BAW080060 Pneumatic Balancer, BA Series, Capacity at 100 PSI (lbs): 800, Reeved Tandem Set-Up Ingersoll Rand "BA" series balancers have no pendant controls and are used for single load suspending applications either at a fixed height or where both hands are used to manually raise, lower and position or "Float" a load. The operator experiences virtually no part weight or resistance in manipulating the load. The "BA" controller is a self-relieving regulator that automatically adds or exhausts air to raise or lower (float) the load to the desired height where it will remain suspended. The regulator can also be adjusted to slowly raise a load up and out of an operators way. The primary application for the "BA" series balancer is for suspending and/or positioning constant weight items. Product Features: Servo Assist: Standard Z-Servo control (BA balancers over 200 lb (90.7 kg)) amplifies the inputs and reduces the effort required to lift the load Safety: If the air supply is ever interrupted, the unit will maintain the load in the suspended position Standard emergency cable retract brake: If the load is accidentally lost, a spring loaded centrifugal brake automatically stops the rapid upward cable travel Standard overload protection: The load being lifted can never exceed the unit’s maximum rated capacity at a given air pressure Cable travel: Length of wire rope up to 30 ft (9.1 m) with cable travel up to 120 inches (3048 mm) depending on model and configuration
