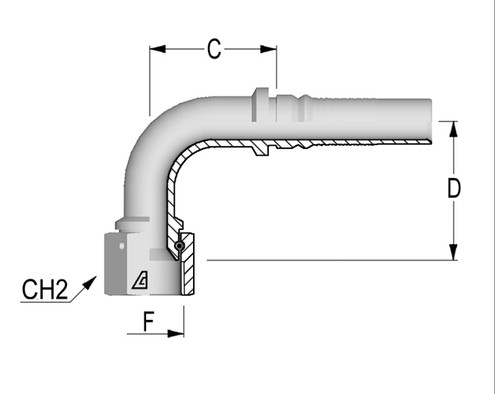

Alfagomma H1422592-2020 90 Deg JIC Swivel Female 37 Deg Seat Solid Bent Tube Interlock, Interlock Two-Piece Fitting
- Brand: Alfagomma
- Seat: 37 Deg
- Hose Dash Size: 20
- Hose I.D.: 1 1/4", 31.8 mm
- Thread Dash Size (A): 20
- Thread Size (A): 1 5/8"-12
- Cut-Off Factor (C): 88.0 mm
- Drop (D): 89.0 mm
- Hex Dia. (1): 50 mm
- Weight: 2.103 lbs
- Material: Steel
- Fitting Type: Interlock
- Connection Type: Female
- Thread Type: JIC
- Configuration: 90Deg
- Nut Type: Thrust Wire
- R5 Hose: 1 1/8
