Description

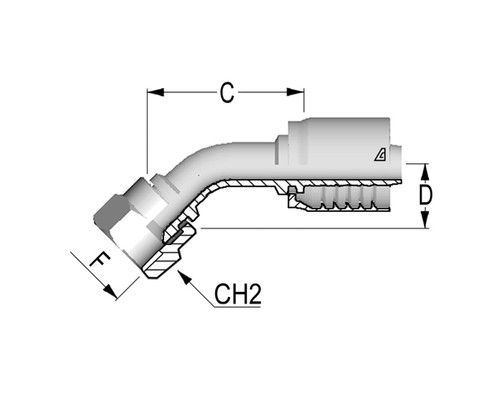

Alfagomma C12222541-1012M 45 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube Fitting, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: JIC
- Material: Steel
- Weight Each: 0.496 lbs
- Seat: 37 Deg
- For Use with these Hoses: AT3K, FXP2, R1AT, R2AT
- Hose Dash Size: 10
- Hose Size: 0.62", 15.90 mm
- Thread Dash Size (A): 12
- Thread Size (A): 1 1/16"-12
- Cut-Off Factor (C): 57.0 mm
- Drop (D): 22.5 mm
- Hex Dia. (1): 32 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Female
- Configuration: 45Deg
- Nut Type: Crimped
- R5 Hose: 1/2
- Special Identification: Medium
