Description

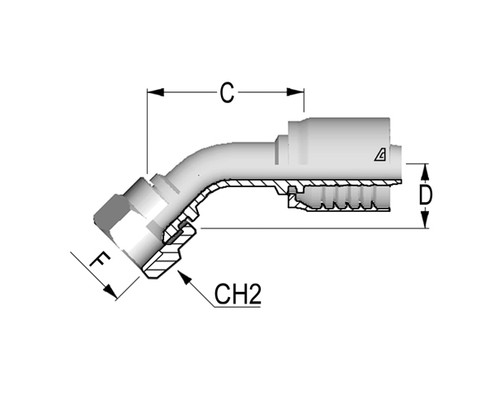

Alfagomma C12222541-0608M 45 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube Fitting, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: JIC
- Material: Steel
- Weight Each: 0.260 lbs
- Seat: 37 Deg
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 06
- Hose Size: 0.38", 9.50 mm
- Thread Dash Size (A): 08
- Thread Size (A): 3/4"-16
- Cut-Off Factor (C): 45.0 mm
- Drop (D): 20.0 mm
- Hex Dia. (1): 25 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Female
- Configuration: 45Deg
- Nut Type: Crimped
- R5 Hose: 5/16
- Special Identification: Medium
