Description

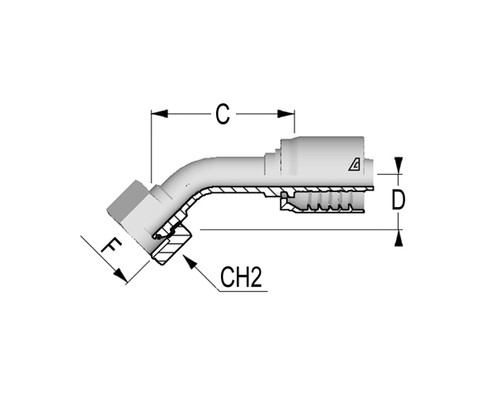

Alfagomma C12220843-0812 45 Deg BSP O-Ring Female Swivel 60 Deg Cone Solid Bent Tube, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: BSP with O-RING
- Material: Steel
- Weight Each: 0.084 lbs
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 08
- Hose Size: 0.50", 12.70 mm
- Thread Dash Size (A): 12
- Thread Size (A): 3/4"-14
- Cut-Off Factor (C): 48.0 mm
- Drop (D): 20.5 mm
- Hex Dia. (1): 32 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Female
- Configuration: 45Deg
- Nut Type: Slip On
- R5 Hose: 3/16
