Description

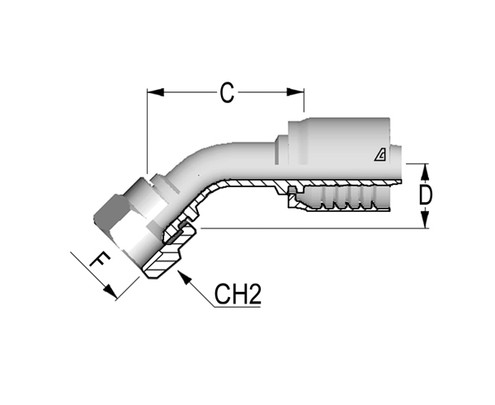

Alfagomma C12122541-0808M 45 Deg JIC Female Swivel 37 Deg Seat, Solid Bent Tube Fitting
- Brand: Alfagomma
- Thread Type: JIC
- Material: Steel
- Weight Each: 0.330 lbs
- Seat: 37 Deg
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 08
- Hose Size: 0.50", 12.70 mm
- Thread Dash Size (A): 08
- Thread Size (A): 3/4"-16
- Cut-Off Factor (C): 55.0 mm
- Drop (D): 20.0 mm
- Hex Dia. (1): 25 mm
- Connection Type: Female
- Configuration: 45Deg
Product Features
Extended Information
Technical Specs
