Description
Alfagomma H1422491-1620 90 Deg ORFS Female Interlock, Interlock Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 16
- Hose I.D.: 1", 25.4 mm
- Thread Dash Size (A): 20
- Thread Size (A): 1 11/16"-12

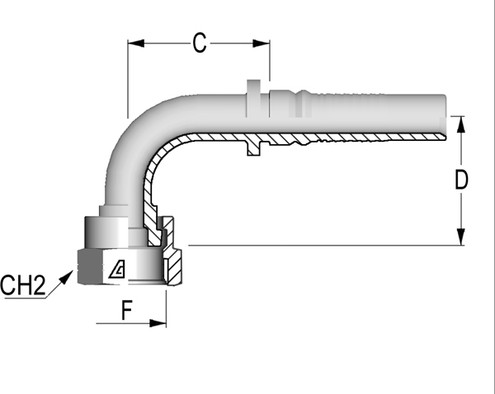

- Cut-Off Factor (C): 72.0 mm
- Drop (D): 66.0 mm
- Hex Dia. (1): 50 mm
- Weight: 1.468 lbs
- Material: Steel
- Fitting Type: Interlock
- Connection Type: Female
- Thread Type: ORFS
- Configuration: 90Deg
- Nut Type: Crimped
- R5 Hose: 7/8
