Description

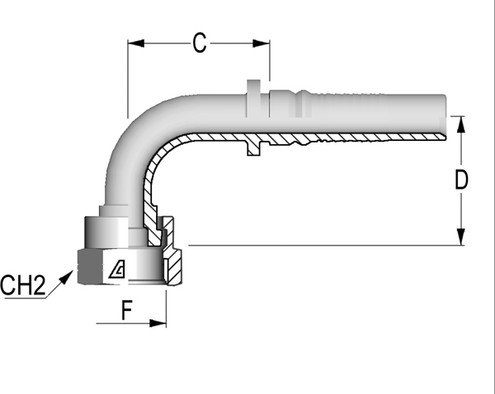

Alfagomma H1422491-1012 90 Deg ORFS Female Interlock, Interlock Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 10
- Hose I.D.: 0.63", 15.9 mm
- Thread Dash Size (A): 12
- Thread Size (A): 1 3/16"-12
- Cut-Off Factor (C): 48.0 mm
- Drop (D): 58.0 mm
- Hex Dia. (1): 36 mm
- Weight: 0.231 lbs
- Material: Steel
- Fitting Type: Interlock
- Connection Type: Female
- Thread Type: ORFS
- Configuration: 90Deg
- Nut Type: Crimped
- R5 Hose: 1/2
