Description

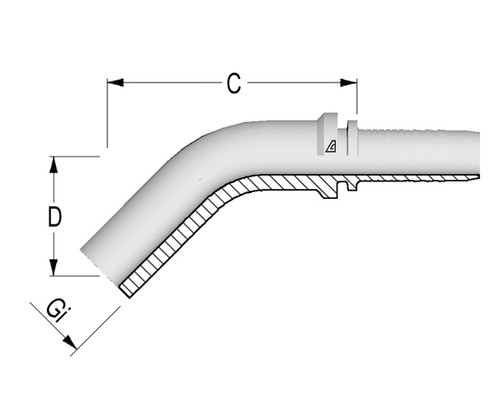

Alfagomma H1252040-0814 45 Deg Metric Solid Bent Tube Standpipe, DIN 2353, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 06
- Hose I.D.: 0.38", 9.5 mm
- Tube O.D.: 14.00 mm
- Cut-Off Factor (C): 56.0 mm
- Drop (D): 28.5 mm
- Weight: 0.220 lbs
- Materia: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Standpipe
- Thread Type: Metric Standpipe
- Configuration: 45Deg
- Nut Type: Solid
- R5 Hose: 13/32
