Description

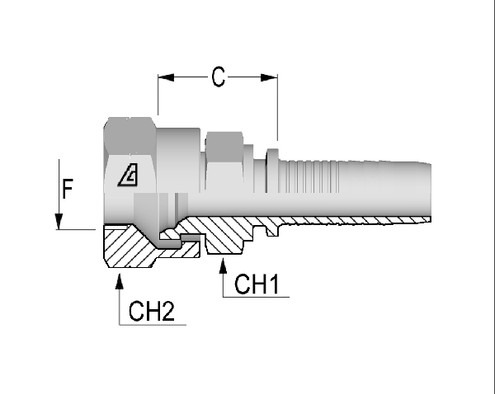

Alfagomma H122381Z-1212 JIS Female Swivel 30 Deg Seat, B 8363 Type F, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 30 Deg
- Hose Dash Size: 12
- Hose I.D.: 3/4", 19.0 mm
- Thread Size (A): 3/4"-14
- Cut-Off Factor (C): 29.6 mm
- Hex Dia. (1): 36 mm
- Hex Dia. (2): 30 mm
- Weight: 0.414 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: JIS Type F
- Configuration: Straight
- Nut Type: Z
- R5 Hose: 5/8
Product Features
Extended Information
Technical Specs
*The list price may not necessarily be the price at which the product or service is sold.
