Description

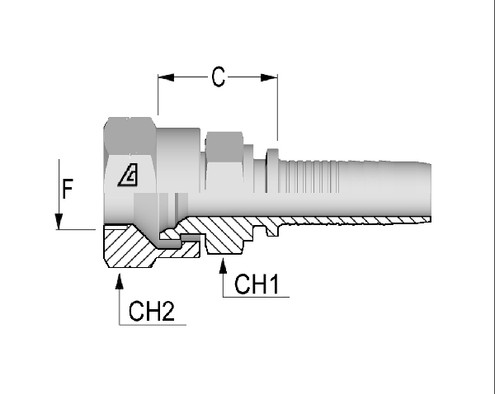

Alfagomma H122381Z-0606 JIS Female Swivel 30 Deg Seat, B 8363 Type F, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 30 Deg
- Hose Dash Size: 06
- Hose I.D.: 0.38", 9.5 mm
- Thread Size (A): 3/8"-19
- Cut-Off Factor (C): 22.8 mm
- Hex Dia. (1): 22 mm
- Hex Dia. (2): 19 mm
- Weight: 0.132 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: JIS Type F
- Configuration: Straight
- Nut Type: Z
- R5 Hose: 5/16
