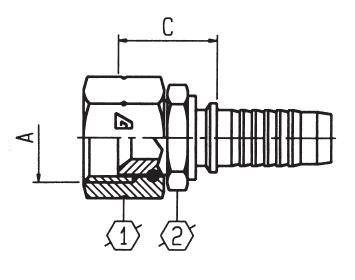

Alfagomma H1223812-2020 JIS Female Swivel 30 Deg Seat, B 8363 Type F, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 30 Deg
- Hose Dash Size: 20
- Hose I.D.: 1 1/4", 31.8 mm
- Thread Size (A): 1 1/4"-11
- Cut-Off Factor (C): 36.5 mm
- Hex Dia. (1): 50 mm
- Hex Dia. (2): 46 mm
- Weight: 1.186 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: JIS Type F
- Configuration: Straight
- Nut Type: Thrust Wire
- R5 Hose: 1 1/8
