Description

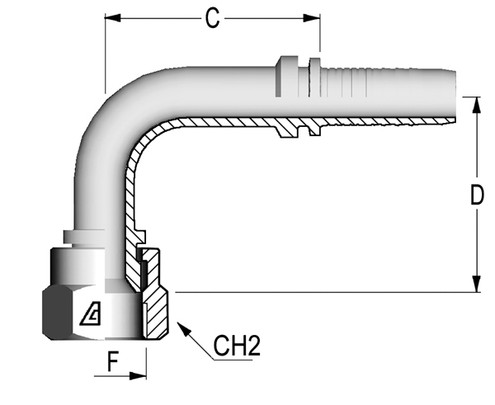

Alfagomma H1222591-1212S 90 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 37 Deg
- Hose Dash Size: 12
- Hose I.D.: 3/4", 19.0 mm
- Thread Dash Size (A): 12
- Thread Size (A): 1 1/16"-12
- Cut-Off Factor (C): 53.5 mm
- Hex Dia. (1): 32 mm
- Weight: 0.628 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: JIC
- Configuration: 90Deg
- Nut Type: Crimped
- R5 Hose: 5/8
- Drop (D): 46.0 mm
- Special Identification: Short
