Description

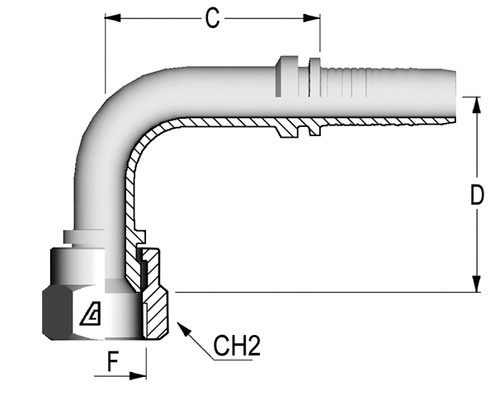

Alfagomma H1222591-1010M 90 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 37 Deg
- Hose Dash Size: 10
- Hose I.D.: 0.63", 15.9mm
- Thread Dash Size (A): 10
- Thread Size (A): 7/8"-14
- Cut-Off Factor (C): 49.0 mm
- Hex Dia. (1): 27 mm
- Weight: 0.395 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: JIC
- Configuration: 90Deg
- Nut Type: Crimped
- R5 Hose: 1/2
- Drop (D): 47.0 mm
- Special Identification: Medium
Product Features
