Description

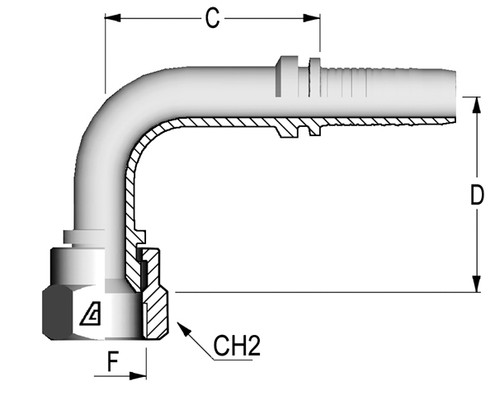

Alfagomma H1222591-0808M 90 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Seat: 37 Deg
- Hose Dash Size: 08
- Hose I.D.: 1/2", 12.7 mm
- Thread Dash Size (A): 08
- Thread Size (A): 3/4"-16
- Cut-Off Factor (C): 37.0 mm
- Hex Dia. (1): 25 mm
- Weight: 0.260 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: JIC
- Configuration: 90Deg
- Nut Type: Crimped
- R5 Hose: 13/32
- Drop (D): 40.0 mm
- Special Identification: Medium
