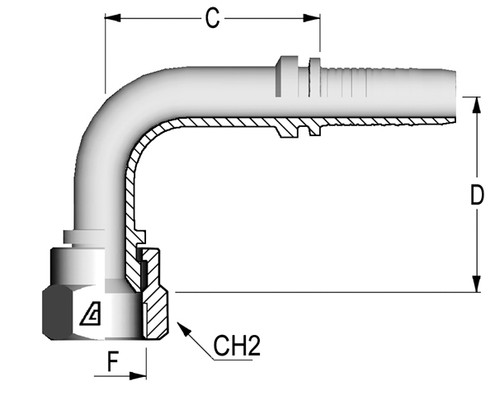

Alfagomma H1222591-0304S 90 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube, 0.19", 4.8 mm

SKU: 04KH12225910304S

Weight: 0.08lbs

$0.00
Free Shipping

on orders $1,000 or more

In Stock

Inquire For Pricing And Availability

Request a Quote Contact Us
Adding to cart… The item has been added
Description

Alfagomma H1222591-0304S 90 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube, Two-Piece Fitting

  • Brand: Alfagomma
  • Seat: 37 Deg
  • Hose Dash Size: 03
  • Hose I.D.: 0.19", 4.8 mm
  • Thread Dash Size (A): 04
  • Thread Size (A): 7/16"-20
  • Cut-Off Factor (C): 25.0 mm
  • Hex Dia. (1): 16 mm
  • Weight: 0.075 lbs
  • Material: Steel
  • Fitting Type: Wire Braid & Multispiral
  • Connection Type: Female
  • Thread Type: JIC
  • Configuration: 90Deg
  • Nut Type: Crimped
  • R5 Hose: 1/8
  • Drop (D): 21.0 mm
  • Special Identification: Short
Prop 65 Warning: Product's may contain one or more substances or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
