Description

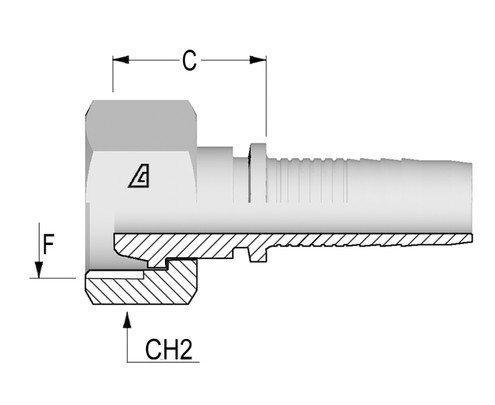

Alfagomma H1221813-1236 Metric Female French Type, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 12
- Hose I.D.: 3/4", 19.0 mm
- Thread Size (A): M36 x 1.5 mm
- Tube O.D.: 26.75 mm
- Cut-Off Factor (C): 27.0 mm
- Hex Dia. (1): 42 mm
- Weight: 0.507 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: French Metric Gaz.
- Configuration: Straight
- Nut Type: Slip On
- R5 Hose: 5/8
