Description

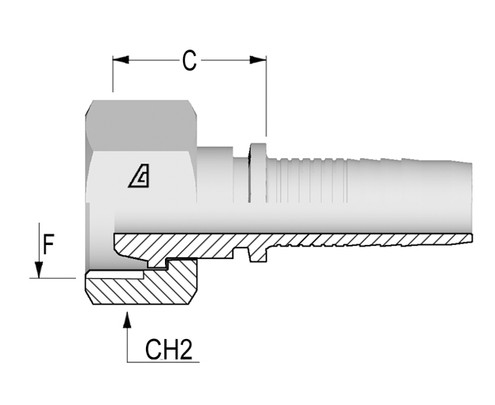

Alfagomma H1221813-0824 Metric Female French Type, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 08
- Hose I.D.: 1/2", 12.7 mm
- Thread Size (A): M24 x 1.5 mm
- Tube O.D.: 16.75 mm
- Cut-Off Factor (C): 26.8 mm
- Hex Dia. (1): 30 mm
- Weight: 0.220 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: French Metric Gaz.
- Configuration: Straight
- Nut Type: Slip On
- R5 Hose: 13/32
