Description

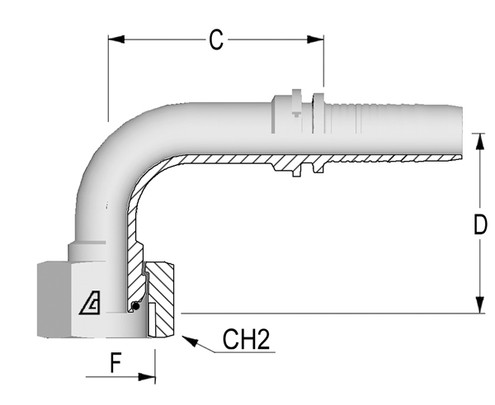

Alfagomma H1220893-1620 90 Deg BSP O-Ring Female Swivel 60 Deg Cone Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 16
- Hose I.D.: 1", 25.4 mm
- Thread Dash Size (A): 20
- Thread Size (A): 1 1/4"-11
- Cut-Off Factor (C): 75.0 mm
- Drop (D): 78.0 mm
- Hex Dia. (1): 50 mm
- Weight: 1.552 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: BSP with O-RING
- Configuration: 90Deg
- Nut Type: Slip On
- R5 Hose: 7/8
