Description

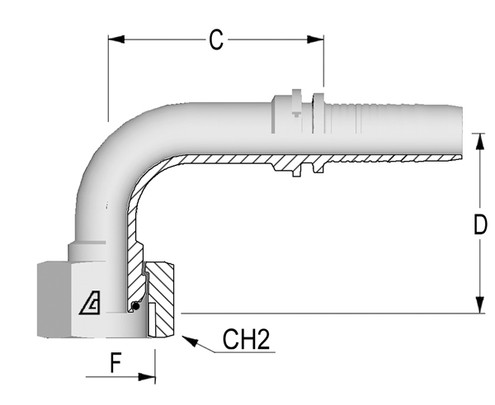

Alfagomma H1220891-1212 90 Deg BSP O-Ring Female Swivel 60 Deg Cone Solid Bent Tube, Two-Piece Fitting
- Brand: Alfagomma
- Hose Dash Size: 12
- Hose I.D.: 3/4", 19.0 mm
- Thread Dash Size (A): 12
- Thread Size (A): 3/4"-14
- Cut-Off Factor (C): 54.0 mm
- Drop (D): 48.0 mm
- Hex Dia. (1): 32 mm
- Weight: 0.485 lbs
- Material: Steel
- Fitting Type: Wire Braid & Multispiral
- Connection Type: Female
- Thread Type: BSP with O-RING
- Configuration: 90Deg
- Nut Type: Crimped
- R5 Hose: 5/8
