Description

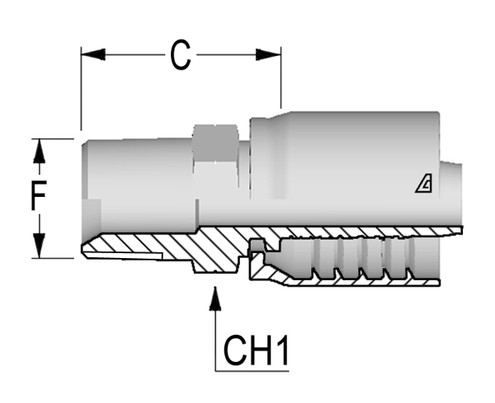

Alfagomma C12612810-2424 NPTF Solid Male 60 Deg Seat, AlfaCrimp One-Piece Fitting
- Note: This fitting is dimensionally the same as NPTF, but has a longer thread length to meet the API (American Petroleum Institute) spec, which allows it to connect to special oil field fittings.
- Brand: Alfagomma
- Thread Type: NPTF
- Material: Steel
- Weight Each: 2.470 lbs
- Seat: 60 Deg
- For Use with these Hoses: R12, R1AT, R2AT
- Hose Dash Size: 24
- Hose Size: 1.50", 38.80 mm
- Thread Dash Size (A): 24
- Thread Size (A): 1 1/2"-11
- Cut-Off Factor (C): 49.5 mm
- Hex Dia. (2): 50 mm
- Connection Type: Male
