Description
Alfagomma C12426512-2020 JIC Female Swivel 37 Deg Seat, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: JIC Female Double Hex
- Material: Steel
- Weight Each: 1.446 lbs
- Seat: 37 Deg
- For Use with these Hoses: R12
- Hose Dash Size: 20
- Hose Size: 1.25", 31.80 mm
- Thread Dash Size (A): 20
- Thread Size (A): 1 5/8"-12

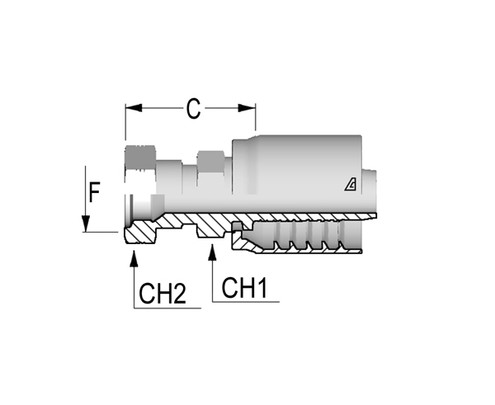

- Cut-Off Factor (C): 36.1 mm
- Hex Dia. (1): 50 mm
- Hex Dia. (2): 41 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
- Connection Type: Female
- Configuration: Straight
- Nut Type: Thrust Wire
