Alfagomma C12422592-2424M 90 Deg JIC Female Swivel 37 Deg Seat, 1.50", 38.80 mm Solid Bent Tube

Alfagomma C12422592-2424M 90 Deg JIC Female Swivel 37 Deg Seat, 1.50", 38.80 mm Solid Bent Tube

SKU: 04KC124225922424M

Weight: 2.67lbs

List $484.89
$323.26
Free Shipping

on orders $1,000 or more

In Stock

Usually Ships In 3-5 Business Days

Request a Quote Contact Us
Adding to cart… The item has been added
Description

Alfagomma C12422592-2424M 90 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube, AlfaCrimp One-Piece Fitting

  • Brand: Alfagomma
  • Thread Type: JIC
  • Material: Steel
  • Weight Each: 2.670 lbs
  • Seat: 37 Deg
  • For Use with these Hoses: R12, R1AT, R2AT
  • Hose Dash Size: 24
  • Hose Size: 1.50", 38.80 mm
  • Thread Dash Size (A): 24
  • Thread Size (A): 1 7/8"-12

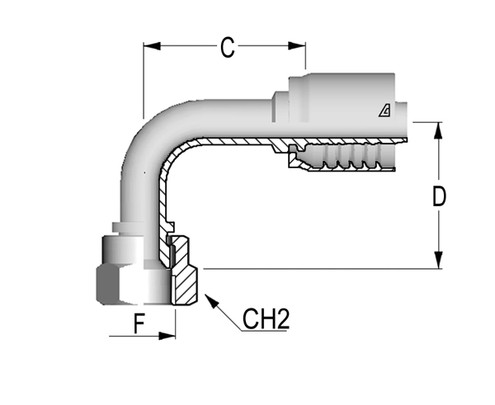

  • Cut-Off Factor (C): 103 mm
  • Drop (D): 86.0 mm
  • Hex Dia. (1): 55 mm
  • Ferrule Type: Non Skive
  • Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
  • Connection Type: Female
  • Configuration: 90Deg
  • Nut Type: Thrust Wire
  • Special Identification: Medium
