Alfagomma C12422591-0810S 90 Deg JIC Female Swivel 37 Deg Seat, 0.50", 12.70 mm Solid Bent Tube

SKU: 04KC124225910810S

Weight: 0.41lbs

List $49.81
$33.20
Free Shipping

on orders $1,000 or more

In Stock

Usually Ships In 3-5 Business Days

Request a Quote Contact Us
Adding to cart… The item has been added
Description

Alfagomma C12422591-0810S 90 Deg JIC Female Swivel 37 Deg Seat Solid Bent Tube, AlfaCrimp One-Piece Fitting

  • Brand: Alfagomma
  • Thread Type: JIC
  • Material: Steel
  • Weight Each: 0.404 lbs
  • Seat: 37 Deg
  • For Use with these Hoses: R12
  • Hose Dash Size: 08
  • Hose Size: 0.50", 12.70 mm
  • Thread Dash Size (A): 10
  • Thread Size (A): 7/8"-14

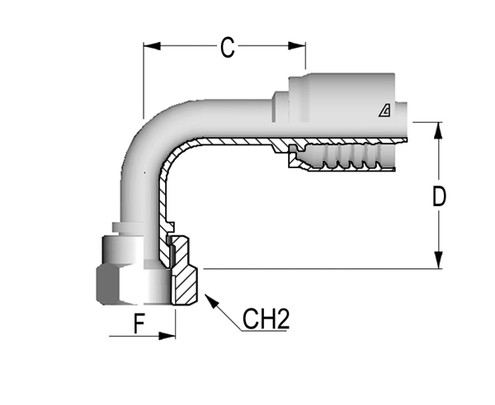

  • Cut-Off Factor (C): 38.0 mm
  • Drop (D): 32.0 mm
  • Hex Dia. (1): 27 mm
  • Ferrule Type: Non Skive
  • Hose Type: 4 Spiral R12
  • Connection Type: Female
  • Configuration: 90Deg
  • Nut Type: Crimped
  • Special Identification: Short
Prop 65 Warning: Product's may contain one or more substances or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
