Alfagomma C12422493-2424L 90 Deg ORFS Female Solid Bent Tube ISO 12151-1, 1.50", 38.80 mm

SKU: 04KC124224932424L

Weight: 3.59lbs

List $473.87
$315.91
Free Shipping

on orders $1,000 or more

In Stock

Usually Ships In 3-5 Business Days

Request a Quote Contact Us
Adding to cart… The item has been added
Description

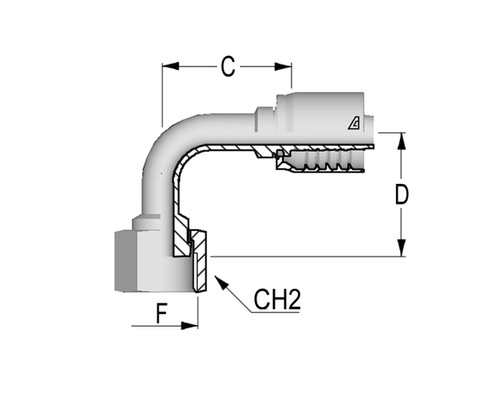

Alfagomma C12422493-2424L 90 Deg ORFS Female Solid Bent Tube ISO 12151-1, AlfaCrimp One-Piece Fitting

  • Brand: Alfagomma
  • Thread Type: ORFS
  • Material: Steel
  • Weight Each: 3.589 lbs
  • For Use with these Hoses: R12, R1AT, R2AT
  • Hose Dash Size: 24
  • Hose Size: 1.50", 38.80 mm
  • Thread Dash Size (A): 24
  • Thread Size (A): 2"-12
  • Cut-Off Factor (C):103.0 mm
  • Drop (D): 141.0 mm
  • Hex Dia. (1): 60 mm
  • Ferrule Type: Non Skive
  • Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
  • Connection Type: Female
  • Configuration: 90Deg
  • Nut Type: Slip On
  • Special Identification: Long
