Description

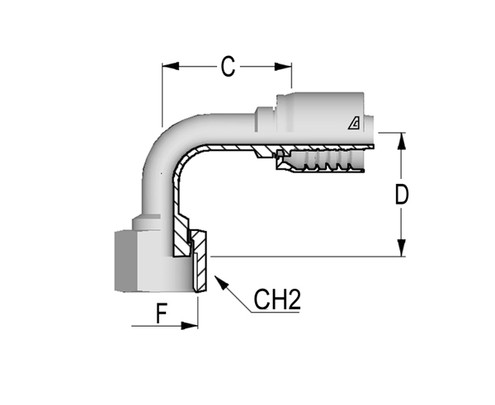

Alfagomma C12422493-2020L 90 Deg ORFS Female Solid Bent Tube ISO 12151-1, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: ORFS
- Material: Steel
- Weight Each: 2.586 lbs
- For Use with these Hoses: R12, R1AT, R2AT
- Hose Dash Size: 20
- Hose Size: 1.25", 31.80 mm
- Thread Dash Size (A): 20
- Thread Size (A): 1 11/16"-12
- Cut-Off Factor (C): 91.0 mm
- Drop (D): 129.0 mm
- Hex Dia. (1): 50 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid, 4 Spiral R12
- Connection Type: Female
- Configuration: 90Deg
- Nut Type: Slip On
- Special Identification: Long
