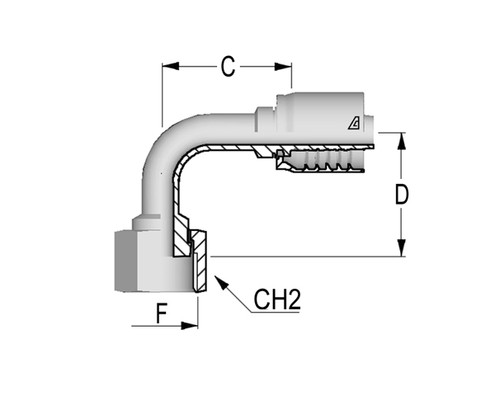

Alfagomma C12422493-0606L 90 Deg ORFS Female Solid Bent Tube ISO 12151-1, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: ORFS
- Material: Steel
- Weight Each: 0.284 lbs
- For Use with these Hoses: R12
- Hose Dash Size: 06
- Hose Size: 0.38", 9.50 mm
- Thread Dash Size (A): 06
- Thread Size (A): 11/16"-16
- Cut-Off Factor (C): 32.0 mm
- Drop (D): 57.0 mm
- Hex Dia. (1): 22 mm
- Ferrule Type: Non Skive
- Hose Type: 4 Spiral R12
- Connection Type: Female
- Configuration: 90Deg
- Nut Type: Slip On
- Special Identification: Long
