Description

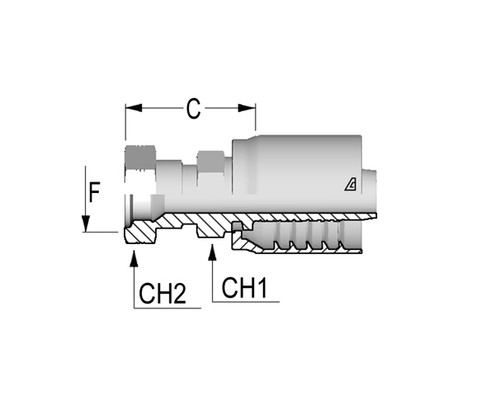

Alfagomma C12226511-0812 JIC Female Swivel 37 Deg Seat Fitting, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: JIC Female Double Hex
- Material: Steel
- Weight Each: 0.388 lbs
- Seat: 37 Deg
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 08
- Hose Size: 0.50", 12.70 mm
- Thread Dash Size (A): 12
- Thread Size (A): 1 1/16"-12
- Cut-Off Factor (C): 28.1 mm
- Hex Dia. (1): 32 mm
- Hex Dia. (2): 27 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Female
- Configuration: Straight
- Nut Type: Crimped
- R5 Hose: 13/32
