Alfagomma C12222493-0608M 90 Deg ORFS Female Solid Bent Tube, 0.38", 9.50 mm ISO 12151-1

SKU: 04KC122224930608M

Weight: 0.27lbs

List $42.58
$28.39
Free Shipping

on orders $1,000 or more

In Stock

Usually Ships In 3-5 Business Days

Request a Quote Contact Us
Adding to cart… The item has been added
Description

Alfagomma C12222493-0608M 90 Deg ORFS Female Solid Bent Tube ISO 12151-1, AlfaCrimp One-Piece Fitting

  • Brand: Alfagomma
  • Thread Type: ORFS
  • Material: Steel
  • Weight Each: 0.289 lbs
  • For Use with these Hoses: FXP2, R1AT, R2AT
  • Hose Dash Size: 06
  • Hose Size: 0.38", 9.50 mm
  • Thread Dash Size (A): 08
  • Thread Size (A): 13/16"-16

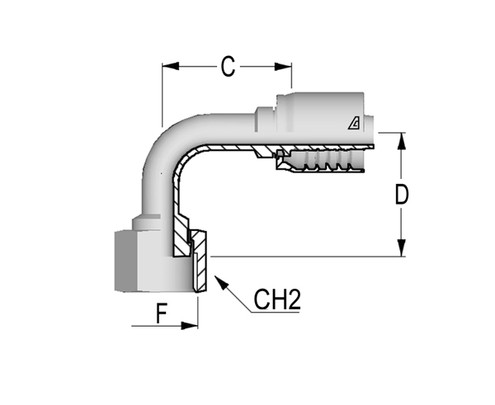

  • Cut-Off Factor (C): 35.0 mm
  • Drop (D): 41.0 mm
  • Hex Dia. (1): 24 mm
  • Ferrule Type: Non Skive
  • Hose Type: 1 or 2 Wire Braid
  • Connection Type: Female
  • Configuration: 90Deg
  • Nut Type: Slip On
  • R5 Hose: 5/16
  • Special Identification: Medium
Prop 65 Warning: Product's may contain one or more substances or chemicals known to the State of California to cause cancer, birth defects, or reproductive harm.
