Description
Alfagomma C12222493-0404L 90 Deg ORFS Female Solid Bent Tube ISO 12151-1, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: ORFS
- Material: Steel
- Weight Each: 0.165 lbs
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 04
- Hose Size: 0.25", 6.40 mm
- Thread Dash Size (A): 04
- Thread Size (A): 9/16"-18

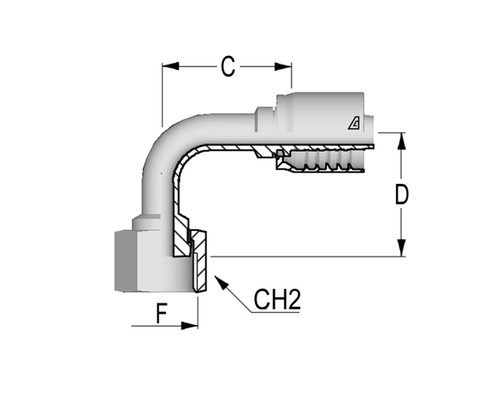

- Cut-Off Factor (C): 25.5 mm
- Drop (D): 46.0 mm
- Hex Dia. (1): 17 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Female
- Configuration: 90Deg
- Nut Type: Slip On
- R5 Hose: 3/16
- Special Identification: Long
