Description

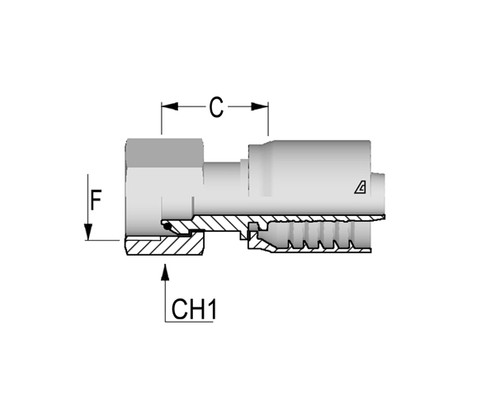

Alfagomma C12220813-0404 BSP O-Ring Female Swivel 60 Deg Cone, AlfaCrimp One-Piece Fitting
- Brand: Alfagomma
- Thread Type: BSP with O-RING
- Material: Steel
- Weight Each: 0.117 lbs
- For Use with these Hoses: FXP2, R1AT, R2AT
- Hose Dash Size: 04
- Hose Size: 0.25", 6.40 mm
- Thread Dash Size (A): 04
- Thread Size (A): 1/4"-19
- Cut-Off Factor (C): 16.0 mm
- Hex Dia. (1): 19 mm
- Ferrule Type: Non Skive
- Hose Type: 1 or 2 Wire Braid
- Connection Type: Female
- Configuration: Straight
- Nut Type: Slip On
- R5 Hose: 3/16
