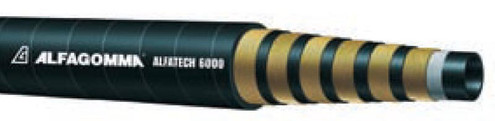

Alfagomma AT897ST-10 Alfa Tech 6000 SuperTuff - Four and Six Wire Spiral Reinforced Hydraulic Hose with Supertuff Cover All Alfa Tech 6000 hydraulic hose meets or exceeds the working and burst pressure requirement of SAE 100 R15. Meets flame resistance acceptance designation US MSHA IC - 152/8 Hydraulic Hose
- Tube - Synthetic rubber, black.. oil-resistant.
- Reinforcement - Four or six layers of spirally wrapped high tensile steel wire reinforcement separated by synthetic rubber cushion on a fabric layer.
- Cover - Synthetic rubber, black.. oil-, fuel-, weather-, ozone- and abrasion-resistant.
- Couplings - Interlock crimp-on permanent type. For Interlock style, hose cover and portion of tube needs to be removed before attaching couplings.
- Branding - Branding - ALFAGOMMA AT6K SUPERTUFF ID...WP 42 MPa BP 168 MPa MSHA IC 152/8 Q/YR
- Brand: Alfagomma
- Braid Type: Six Wire Spiral Reinforced
- Nominal I.D.: 0.63", 15.90 mm
- Nominal O.D.: 11.14", 28.6 mm
- Max. Working Pressure: 42.0 MPa, 6000 PSI
- Min. Bend Radius: 10.00", 250.0 mm
- Approx. Weight (per 100 ft.): 88.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1400200-10
- Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 121 Deg C, 80 Deg C, 121 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Petroleum-based hydraulic fluids
