Description

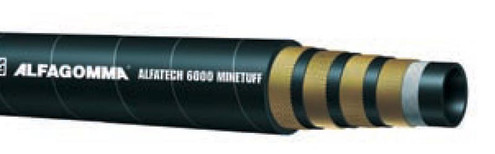

Alfagomma AT897MT-16 Alfa Tech 6000 Minetuff Hydraulic Hose, Two Wire Braid and Four or Six Wire Spiral Reinforced Hydraulic Hose with Minetuff Cover
- Tube - Synthetic rubber, black..oil-resistant.
- Reinforcement - Four or six layers of spirally wrapped high tensile steel wire reinforcement separated by synthetic rubber cushion on a fabric layer.
- Cover - Synthetic rubber, black… oil-, fuel-, weather-, ozone- and abrasion-resistant.
- Couplings - Interlock crimp-on permanent type.
- Branding - ALFAGOMMA ALFATECH 5000 ID…WP MPa MSHA IC 152/8 Q/YR.
- Brand: Alfagomma
- Braid Type: Four Wire Spiral Reinforced
- Nominal I.D.: 1.00", 25.40 mm
- Nominal O.D.: 1.520", 38.7 mm
- Max. Working Pressure: 42.0 MPa, 6000 PSI
- Min. Bend Radius: 11.20", 280.0 mm
- Approx. Weight (per 100 ft.): 142.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1400200-16
- Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 121 Deg C, 80 Deg C, 121 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Petroleum-based hydraulic fluids
