Description

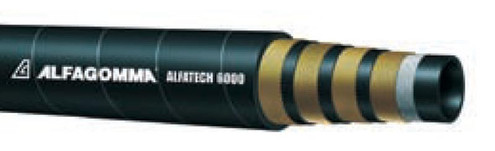

Alfagomma AT897AA-24 Alfa Tech 6000 Hydraulic Hose - Four and Six Wire Spiral reinforced Hydraulic Hose
- Tube - Synthetic rubber, black... oil-resistant.
- Reinforcement - Four or six layers of spirally wrapped high tensile steel wire reinforcement separated by synthetic rubber cushion on a fabric layer.
- Cover - Synthetic rubber, black... oil, fuel, weather, ozone and abrasion-resistant.
- Couplings - Interlock crimp-on permanent type.
- Note: For Interlock style, hose cover and portion of tube needs to be removed before attaching couplings.
- Branding - ALFAGOMMA ALFATECH 6000 ID...WP 42 MPa BP 168 MPa MSHA IC 152/8 Q/YR
- Brand: Alfagomma
- Braid Type: Four Wire Spiral Reinforced
- Nominal I.D.: 1.500", 38.10 mm
- Nominal O.D.: 2.260", 57.3 mm
- Max. Working Pressure: 42.0 MPa, 6000 PSI
- Min. Bend Radius: 12.50", 315.0 mm
- Approx. Weight (per 100 ft.): 329.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1400200-24
- Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 121 Deg C, 80 Deg C, 121 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Petroleum-based hydraulic fluids
Product Features
Extended Information
Technical Specs
