Description

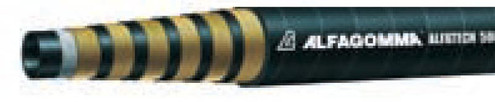

Alfagomma AT896ST-16 Alfa Tech 5000 SuperTuff Hydraulic Hose - Two wire braid and four or six wire spiral reinforced hydraulic hose with Supertuff cover
- Tube - Synthetic rubber, black..oil-resistant.
- Reinforcement -Double high tensile steel wire braid or four or six layers of spirally wrapped high tensile steel wire reinforcement separated by synthetic rubber cushion on a fabric layer.
- Cover - Synthetic rubber, black… oil-, fuel-, weather-, ozone- and abrasion-resistant.
- Couplings - Crimp-on permanent type (Interlock size -10 and up). For Interlock style, hose cover and portion of tube needs to be removed before attaching couplings.
- Branding - ALFAGOMMA AT5K SUPERTUFF ID...WP 35 MPa BP 140 MPa MSHA IC 152/8 Q/YR
- Brand: Alfagomma
- Braid Type: Six Wire Spiral Reinforced
- Nominal I.D.: 1.0", 25.40 mm
- Nominal O.D.: 1.530", 38.7 mm
- Max. Working Pressure: 35.0 MPa, 5000 PSI
- Min. Bend Radius: 7.50", 190.0 mm
- Approx. Weight (per 100 ft.): 135.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1400200-16
- Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 121 Deg C, 80 Deg C, 121 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Petroleum-based hydraulic fluids
