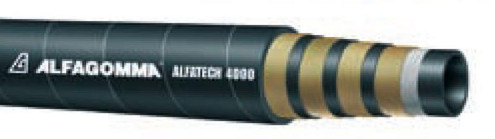

Alfagomma AT894ST-12 Alfa Tech 4000 SuperTuff, 0.75", 19 mm Hydraulic Hose

SKU: 04KAT894ST12

Weight: 0.87lbs

List $47.53
$31.69
Free Shipping

on orders $1,000 or more

In Stock

Usually Ships In 3-5 Business Days

Request a Quote Contact Us
Adding to cart… The item has been added
Description

Alfagomma AT894ST-12 Alfa Tech 4000 SuperTuff - Two wire braid or four wire spiral reinforced hydraulic hose with Supertuff cover. Hydraulic Hose

  • Tube - Synthetic rubber, black..oil-resistant.
  • Reinforcement - Double high tensile steel wire compact braid or four layers of spirally wrapped high tensile steel wire reinforcement separated by synthetic rubber cushion on a fabric layer.
  • Cover - Synthetic rubber, black… oil-, fuel-, weather-, ozone- and abrasion-resistant.
  • Couplings - Crimp-on permanent type or Interlock. For Interlock style, hose cover and portion of tube needs to be removed before attaching couplings.
  • Branding - ALFAGOMMA AT4K SUPERTUFF ID...WP 28 MPa BP 112 MPa MSHA IC 152/8 - Q/YR
  • Brand: Alfagomma
  • Braid Type: Four Wire Spiral Reinforced
  • Nominal I.D.: 0.75", 19 mm
  • Nominal O.D.: 1.210", 30.07 mm
  • Max. Working Pressure: 28.0 MPa, 4000 PSI
  • Min. Bend Radius: 5", 125.0 mm
  • Approx. Weight (per 100 ft.): 87.00 lbs
  • Coupling Recommendations Ferrules (Two Piece): H1200204-12
  • Coupling Recommendations New Ferrules (Two Piece): H1400200-12
  • Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 121 Deg C, 80 Deg C, 121 Deg C
  • Option: MSHA accepted cover available on request.
  • Application / Material Conveyed: Petroleum-based hydraulic fluids
