Description

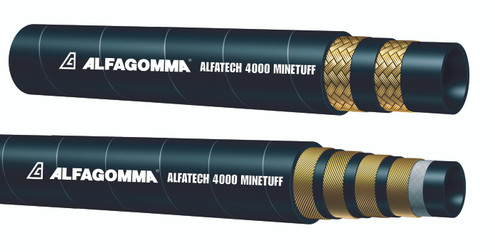

Alfagomma AT894MT-16 Alfa Tech 4000 Minetuff Hydraulic Hose - Two Wire Braid and Four Spiral Wire Reinforced Hydraulic Hose with Minetuff Cover
- Tube - Synthetic rubber, black… oil-resistant.
- Reinforcement - Two high-tensile steel braids or four high-tensile steel spirals.
- Cover - Synthetic rubber, black… oil-, fuel-, weather-, ozone- and abrasion-resistant.
- Couplings - Crimp-on permanent type. For Interlock style, hose cover and portion of tube needs to be removed before attaching interlock couplings.
- Branding - ALFAGOMMA ALFATECH 4000 ID…WP MPa... MPa... MSHA IC 152/8 Q/YR.
- Brand: Alfagomma
- Nominal I.D.: 1.0", 25.40 mm
- Nominal O.D.: 1.5", 38 mm
- Max. Working Pressure: 28 MPa, 4000 PSI
- Min. Bend Radius: 6.00", 150.0 mm
- Approx. Weight (per 100 ft.): 119.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1200204-16
- Coupling Recommendations Skive Option (Two Piece): H1100200-16
- Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 100 Deg C, 80 Deg C, 121 Deg C
- Application / Material Conveyed: Petroleum-based hydraulic fluids
