Description

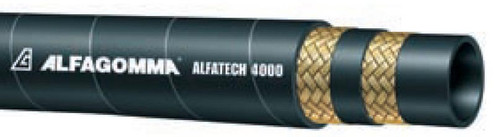

Alfagomma AT894AA-12 Alfa Tech 4000 Hydraulic Hose - Two wire braid or four wire spiral reinforced hydraulic hose Double wire braid and Four wire spiral Specification Reference: EN 857 2SC (1/2), SAE 100 R12 (5/8, 3/4, 1), EN 456 4SP (1 1/4), EN 456 4SH (1 1/2, 2) - Meets flame resistance acceptance designation US MSHA IC-152/8.
- Tube - Synthetic rubber, black... oil-resistant.
- Reinforcement - Double high tensile steel wire compact braid or four layers of spirally wrapped high tensile steel wire reinforcement separated by synthetic rubber cushion on a fabric layer.
- Cover - Synthetic rubber, black... oil, fuel, weather, ozone and abrasion-resistant.
- Couplings - Crimp-on permanent type or Interlock.
- Note: For Interlock style, hose cover and portion of tube needs to be removed before attaching couplings.
- Branding - ALFAGOMMA ALFATECH 4000 ID...WP 28 MPa BP 112 MPa MSHA IC 152/8 - Q/YR.
- Brand: Alfagomma
- Braid Type: Four Wire Spiral Reinforced
- Nominal I.D.: 0.75", 19 mm
- Nominal O.D.: 1.210", 30.7 mm
- Max. Working Pressure: 28.0 MPa, 4000 PSI
- Min. Bend Radius: 5.00", 125.0 mm
- Approx. Weight (per 100 ft.): 87.00 lbs
- Coupling Recommendations Ferrules (Two Piece): H1200202-12
- Coupling Recommendations New Ferrules (Two Piece): H1400204-12
- Temperature: -40 to 250 Deg F, 175 Deg F, 250 Deg F, -40 to 121 Deg C, 80 Deg C, 121 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Petroleum-based hydraulic fluids
