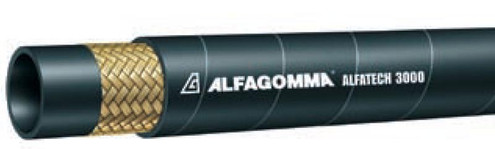

Alfagomma AT833ST-12 Alfa Tech 3000 SuperTuff Hydraulic Hose - Single and double compact wire braid hydraulic hose with Supertuff cover Meets or exceeds SAE 100 R17, meets or exceeds EN 857 1SC (sizes -04 and -06)
- Tube - Synthetic rubber, black.
- Reinforcement - One or two layer high tensile steel wire braid.
- Cover - Synthetic rubber, black.. weather-, oil-, fuel-, ozone- and abrasion-resistant.
- Couplings - Crimp-on permanent type.
- Branding - ALFAGOMMA AT3K SUPERTUFF ID..WP .. MPa (..PSI) - SAE 100R17 - DN ..Q/YR Sizes -04 and -06 include "EN 857 1SC" on layline.
- Brand: Alfagomma
- Braid Type: Single Wire
- Nominal I.D.: 0.75", 19 mm
- Nominal O.D.: 1.090", 27.7 mm
- Max. Working Pressure: 21.0 MPa, 3000 PSI
- Min. Bend Radius: 5", 125.0 mm
- Approx. Weight (per 100 ft.): 59.00 lbs
- Coupling Recommendations AlfaCrimp (One Piece): C122XXXXX-12
- Coupling Recommendations Ferrules (Two Piece): H1200202-12
- Temperature: -40 to 212 Deg F, 160 Deg F, 257 Deg F,-40 to 100 Deg C, 70 Deg C, 125 Deg C
- Option: MSHA accepted cover available on request.
- Application / Material Conveyed: Air, Crude oils, Grease, Hot oil, Lubricants, Petroleum-based hydraulic fluids, Water
