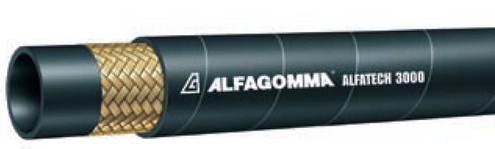

Alfagomma AT833ST-04 Alfa Tech 3000 SuperTuff Hydraulic Hose

SKU: 04KAT833ST04

Weight: 0.1lbs

List $10.14
$6.77
Free Shipping

on orders $1,000 or more

In Stock

Usually Ships In 3-5 Business Days

Request a Quote Contact Us
Adding to cart… The item has been added
Description

Alfagomma AT833ST-04 Alfa Tech 3000 SuperTuff Hydraulic Hose - Single and double compact wire braid hydraulic hose with Supertuff cover Meets or exceeds SAE 100 R17, meets or exceeds EN 857 1SC (sizes -04 and -06)

  • Tube - Synthetic rubber, black.
  • Reinforcement - One or two layer high tensile steel wire braid.
  • Cover - Synthetic rubber, black.. weather-, oil-, fuel-, ozone- and abrasion-resistant.
  • Couplings - Crimp-on permanent type.
  • Branding - ALFAGOMMA AT3K SUPERTUFF ID..WP .. MPa (..PSI) - SAE 100R17 - DN ..Q/YR Sizes -04 and -06 include "EN 857 1SC" on layline.
  • Brand: Alfagomma
  • Braid Type: Single Wire
  • Nominal I.D.: 0.250", 6.35 mm
  • Nominal O.D.: 0.480", 12.1 mm
  • Max. Working Pressure: 3250 PSI
  • Min. Bend Radius: 2.00", 50.0 mm
  • Approx. Weight (per 100 ft.): 10.00 lbs
  • Coupling Recommendations AlfaCrimp (One Piece): C121XXXXX-04
  • Coupling Recommendations Ferrules (Two Piece): H1200103-04
  • Coupling Recommendations New Ferrules (Two Piece): H1200101-04
  • Temperature: -40 to 212 Deg F, 160 Deg F, 257 Deg F,-40 to 100 Deg C, 70 Deg C, 125 Deg C
  • Option: MSHA accepted cover available on request.
  • Application / Material Conveyed: Air, Crude oils, Grease, Hot oil, Lubricants, Petroleum-based hydraulic fluids, Water
